AB16

SKU: ACT0051 (Black), ACT0052 (White)

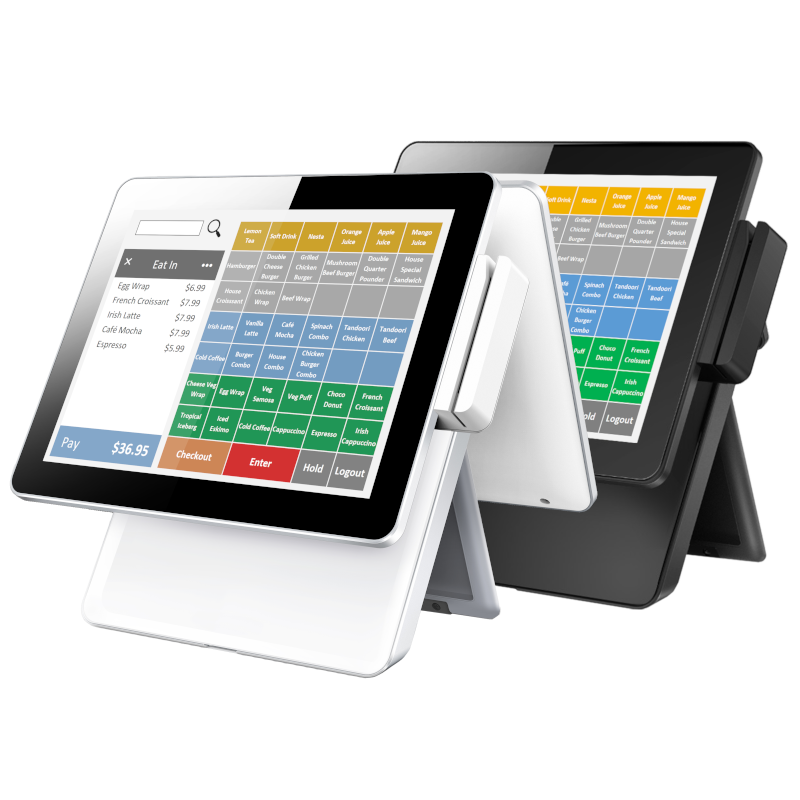

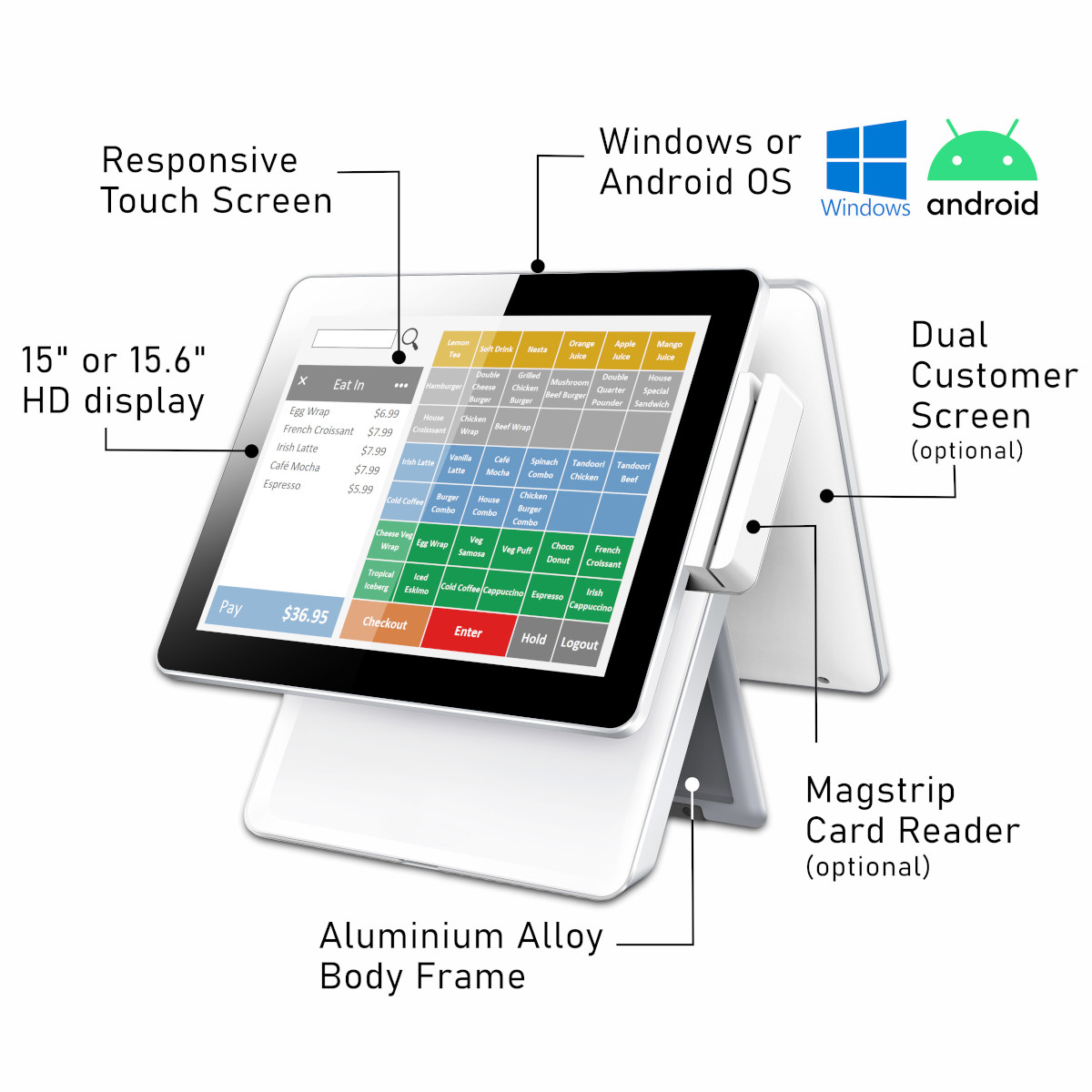

Modern Touch Screen POS

• 15” True-Flat Highly Responsive Capacitive Touch Screen
• 4:3 aspect ratio
• Intel Celeron J6412 quad-core processor
• 128GB SSD storage and 4GB RAM

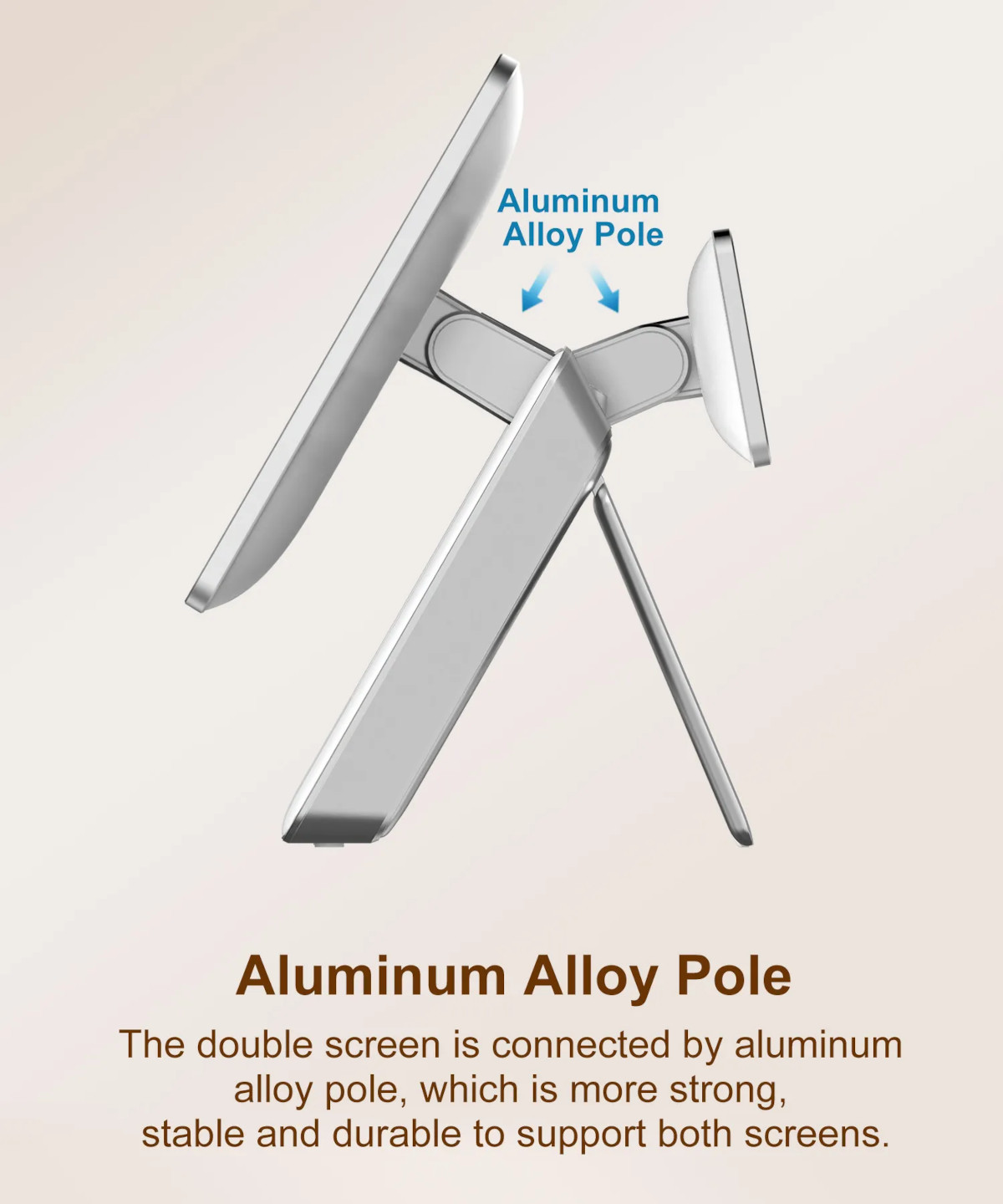

• Aluminum alloy body frame
• Stylish metallic and glossy coating
• Windows 10 Pro operating system
• Built-in WiFi adapter

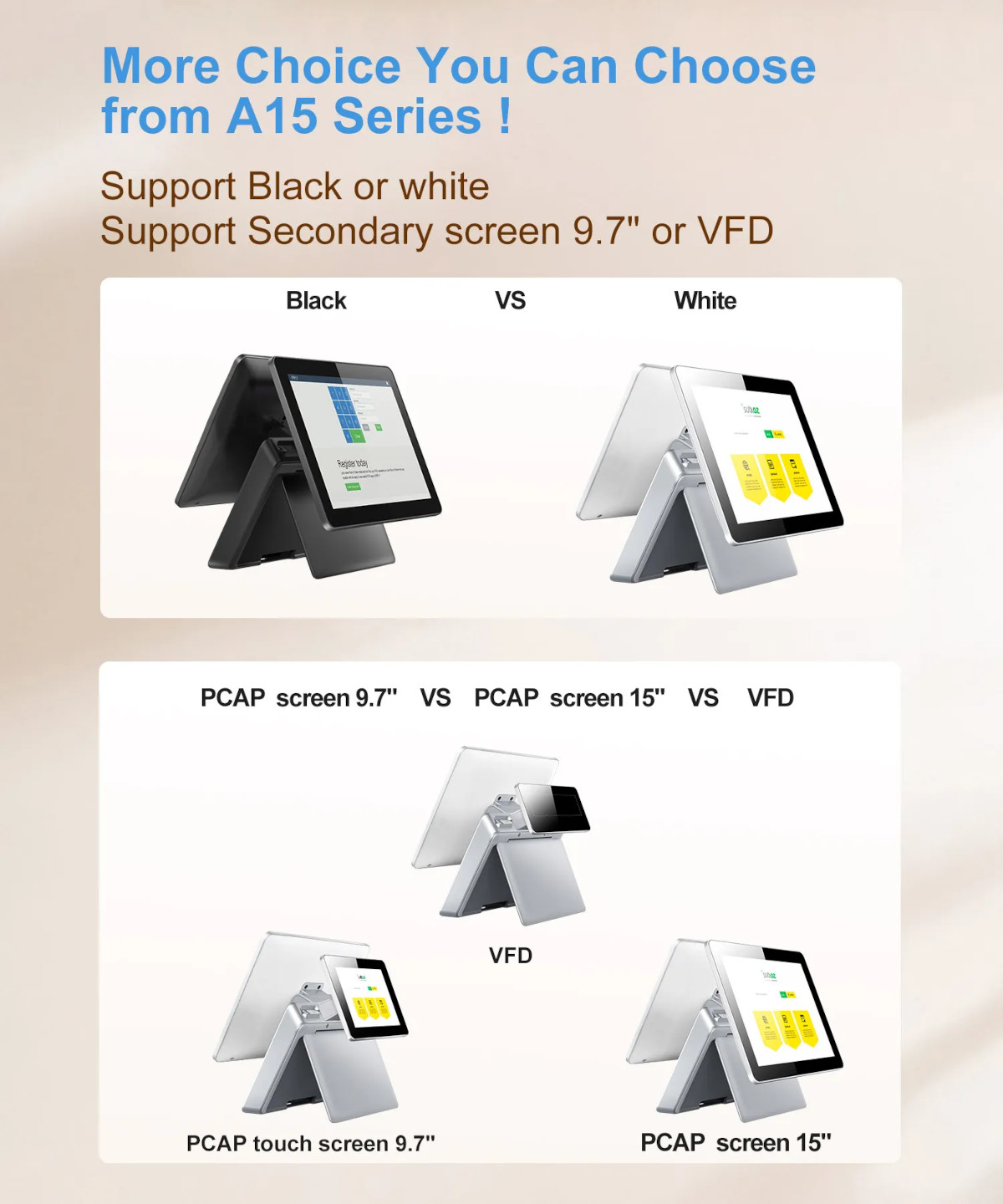

• Optional upgrades: 9.7″ LCD customer display, 15″ LCD customer display, Mag-stripe card reader

Specifications

OS Windows 10 Pro, Windows 10 IoT, Windows 11 Pro
CPU Intel Celeron J6412
Memory 4GB DDR4
Storage 128GB SSD
Color Matte black / Glossy white
Dimension 365 x 295mm (screen frame), 355mm (top to base)
Gross Weight 8.14KG (with 15" customer display)
Power Adapter / Supply Input AC100-240V

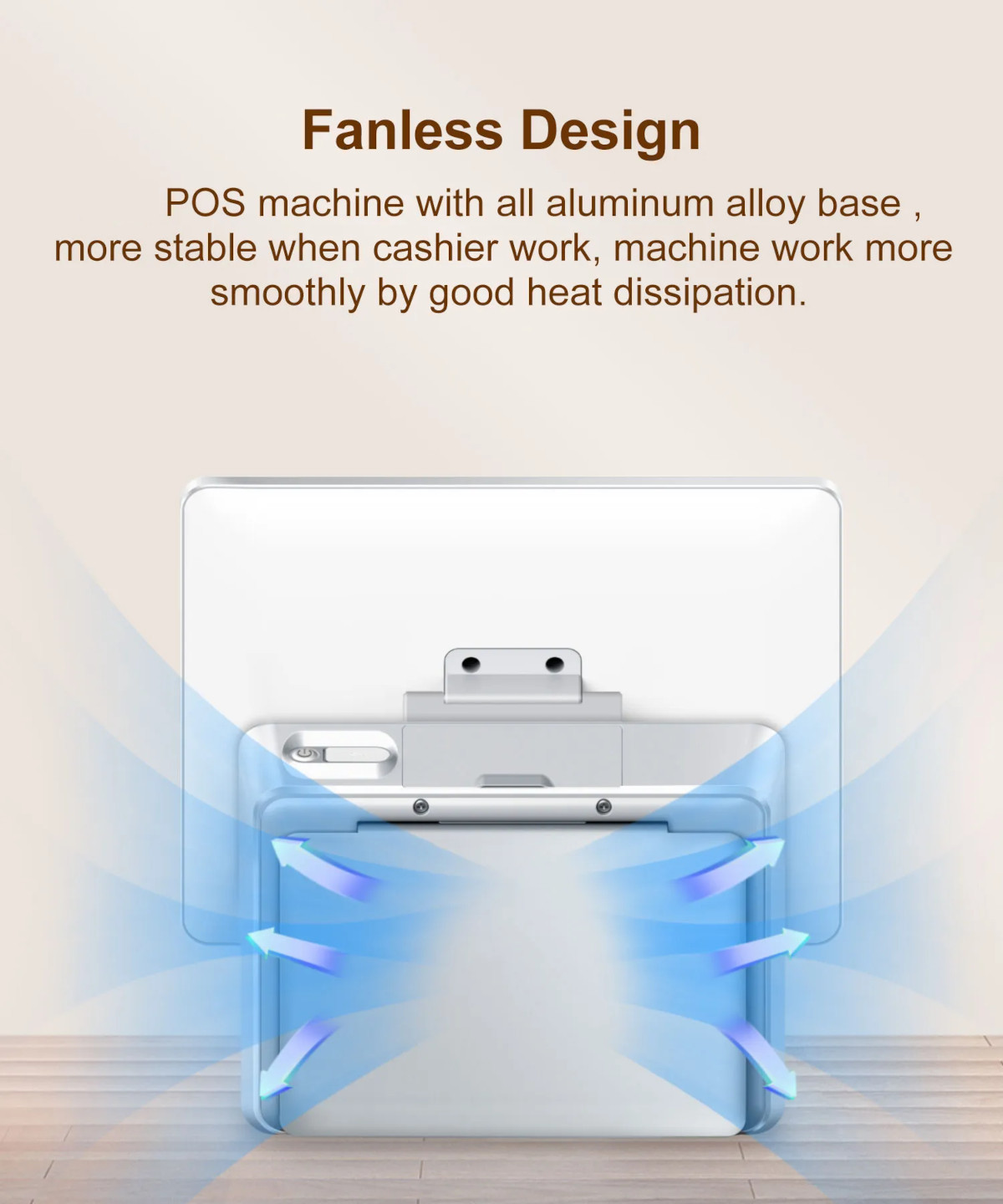

Cooler & FAN Fanless
Display Size 15" (4:3)
Resolution 1024 x 768
Touch Panel Capacitive Touch
Angle Tilt 56 degree
Speaker NA

Port Interfaces

HDMI 1 (Out)
VGA NA
LAN 1 x 10/100/1000M LAN
WiFi 2.4GHz / 5GHz
Serial 2
USB USB2.0 x 5, USB3.0 x 2
Audio 1 (line out)
Bluetooth & NFC NA
Cash Drawer RJ12 x1
pos interface

Optional Peripherals

Customer Display 9.7" display / 15" display
Memory optional upgrade 8GB DDR4
Storage optional upgrade 256GB
Card Reader Optional Mag-stripe card reader
