AP20

SKU: ACT0068

Efficient & Smart POS Idea

• 15.6″ capacitive touch screen
• 16:9 aspect ratio
• Intel Celeron J1900 processor
• Windows 10 operating system
• 4GB RAM and 64GB SSD storage

Specifications

OS Windows 10 Pro
CPU Intel Celeron J1900
Memory 4GB DDR3
Storage 64GB SSD
Color Glossy white

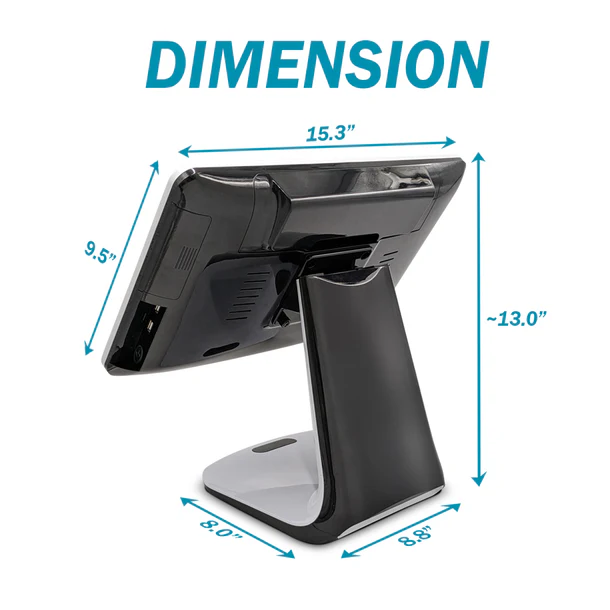

Dimension 390 x 245mm (screen frame), 340mm (top to base)
Gross Weight 5.95KG (with customer display)
Power Adapter / Supply Input: AC 100V/240V, 50~60Hz; Output: DC12V/5A (4Pin)
Cooler & FAN Fanless
Display Size 15.6" (16:9)
Resolution 1024 x 768
Touch Panel Capacitive Touch

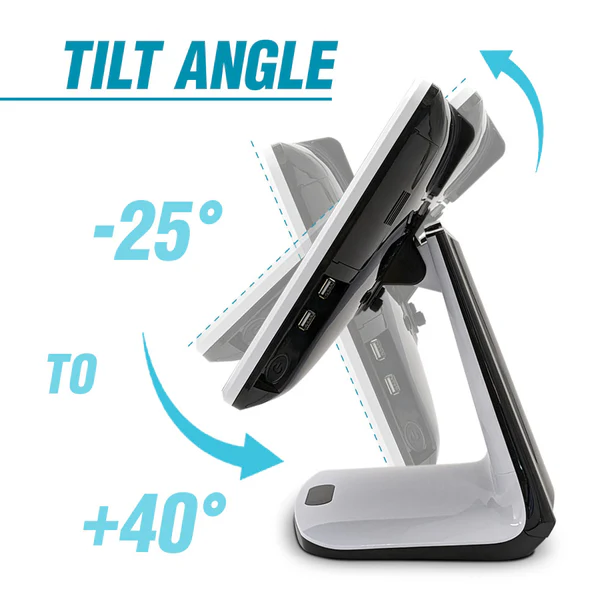

Angle Tilt -25 to +40 degree
Speaker NA

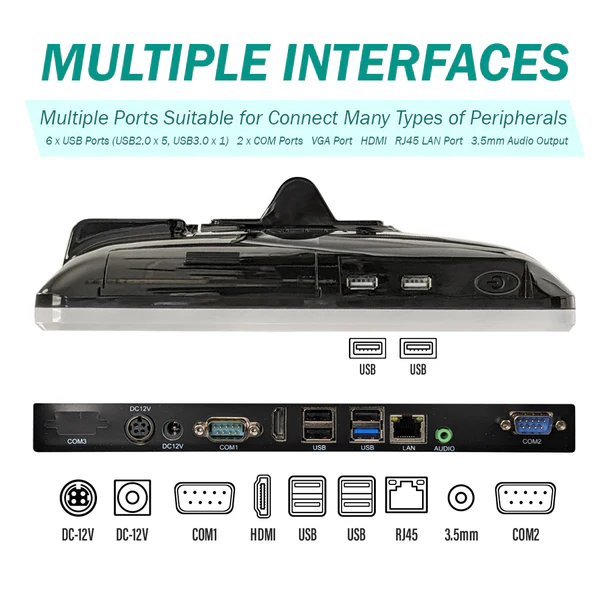

Port Interfaces

HDMI 1 (Reserved for customer screen)
VGA NA
LAN 1 x 10/100M LAN
WiFi 2.4GHz / 5GHz
Serial 2
USB USB2.0 x 3, USB3.0 x 1
Audio 1 (line out)
Bluetooth & NFC NA
pos interface

Optional Peripherals

Customer Display 12.5" display, or 2 line VFD price display
Memory optional upgrade 8GB DDR3
Storage optional upgrade 128GB SSD
Card Reader Optional Mag-stripe card reader
