Crane 1

SKU: ACT0438 (16"), ACT0443 (21.5")

Multi-purpose IDS redefines modularity

• 4 Available Sizes (32″ / 27″ / 21.5″ / 16″) Capacitive Touch Screen
• Android 13, 64 bit
• Octa-Core (Dual-Core Arm Cortex-A78 2.2GHz, Hexa-Core Arm Cortex-A55 2.0GHz)
• 4GB RAM, 64GB ROM (optional to upgrade)

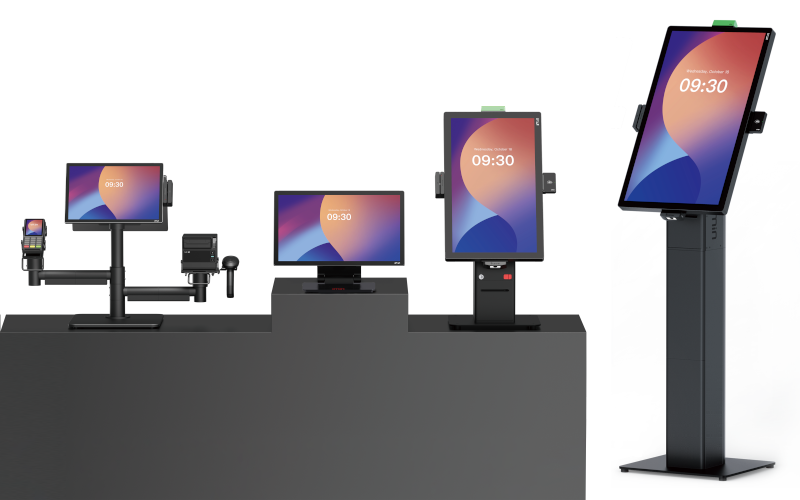

• Multiple option of stand (Floor / Table / Cashier / Retail)
• Optional accessories (Status Light, NFC, Scanner, MSR)

Specifications

OS Android 13, 64 bit
CPU Octa-Core (Dual-Core Arm Cortex-A78 2.2GHz,Hexa-Core Arm Cortex-A55 2.0GHz)
Memory 4GB
Storage 64GB
Color Black
Dimension 32" Display: 746.5 x 441 x 56.5mm;
27" Display: 645.5 x 384 x 47.5mm;
21.5" Display: 525 x 316.7 x 46.5mm;
16" Display: 375 x 246 x 36.5mm
Gross Weight 32” Display: 9.3kg;
27” Display: 7.3kg;
21.5” Display: 4.8kg;
16” Display: 1.6kg
Power Adapter / Supply Input: 100 ~ 240V, Output: 24V / 2.5A
Operating Temperature -10 ~ 50℃
Storage Temperature -20 ~ 60℃
Cooler & FAN Fanless

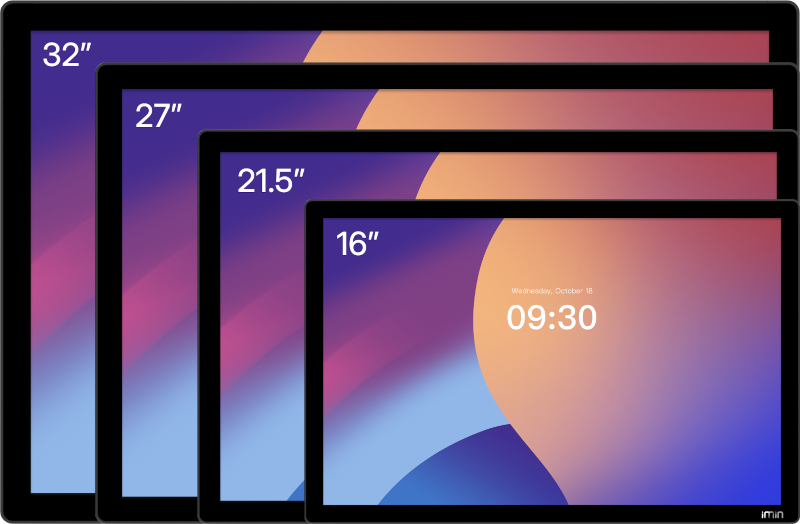

Display Size 32" / 27" / 21.5" / 16"
Resolution 32" (1920 x 1080);
27" (1920 x 1080);
21.5" (1920 x 1080);
16" (1920 x 1200);
Optional 16" secondary display (1920 x 1200)
Touch Panel 10 Point Capacitive Touch Panel; Secondary Display (Sold Separately)
Speaker 3W Mono
Certification FCC CE IMDA WEEE

Port Interfaces

LAN 1 x 1000M
WiFi Wi-Fi 6, 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
USB USB Type-A 2.0 x 6, USB Type-C x 1
Audio 3.5mm Audio Jack x 1
Bluetooth & NFC Bluetooth 5.3
Cash Drawer RJ12 x 1, RJ11 x 1
Others 16” Display: USB Pogo Pin x 2, USB+I2C Pogo Pin x 1; 21.5” / 27” / 32” Display: USB Pogo Pin x 3,USB+I2C Pogo Pin x 1

Optional Peripherals

Scanner Optional scanner
Card terminal Comes with the Retail Stand

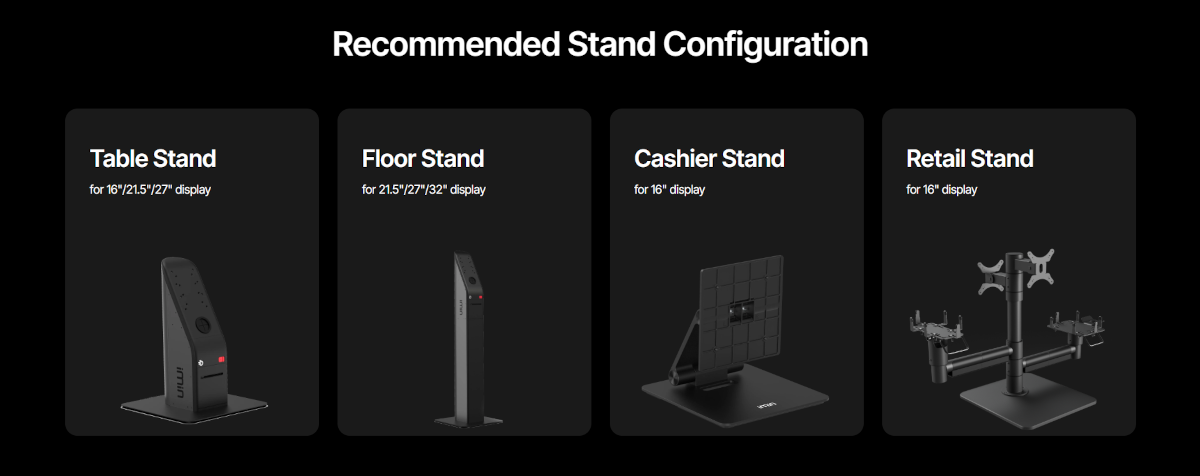

Mount Kit Floor Stand / Table Stand / Cashier Stand / Retail Stand
Customer Display 16" display
Memory Optional upgrade 8GB
Storage Optional upgrade 128GB
Card Reader Optional MSR reader module

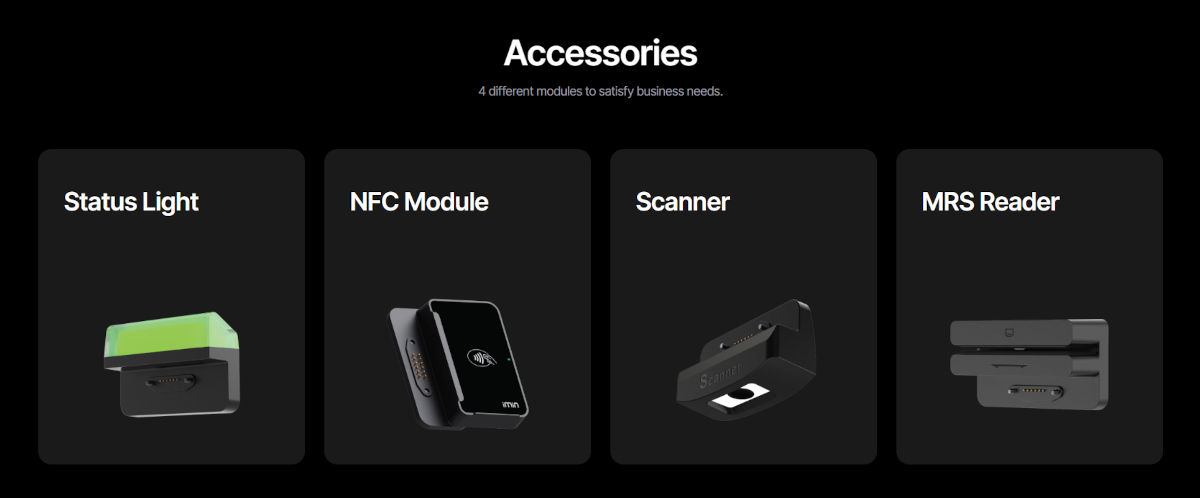

Optional Items Optional status light, NFC module
